enpower P/N：ENL-FP24200
oem battery：
Part Number：
Manufacturer (OEM)：
oem model：
chemistry：LiFePO4
voltge：24V
capacity：300Ah
Voltage/Capacity：
Demension (H*W*D)(cm)：Customized
compatible radio：
Description：Apply to Home Appliances, Electric Power Systems, Backup batteries, Uninterruptible Power Supplies, Vehicle and so on.
compatible models：

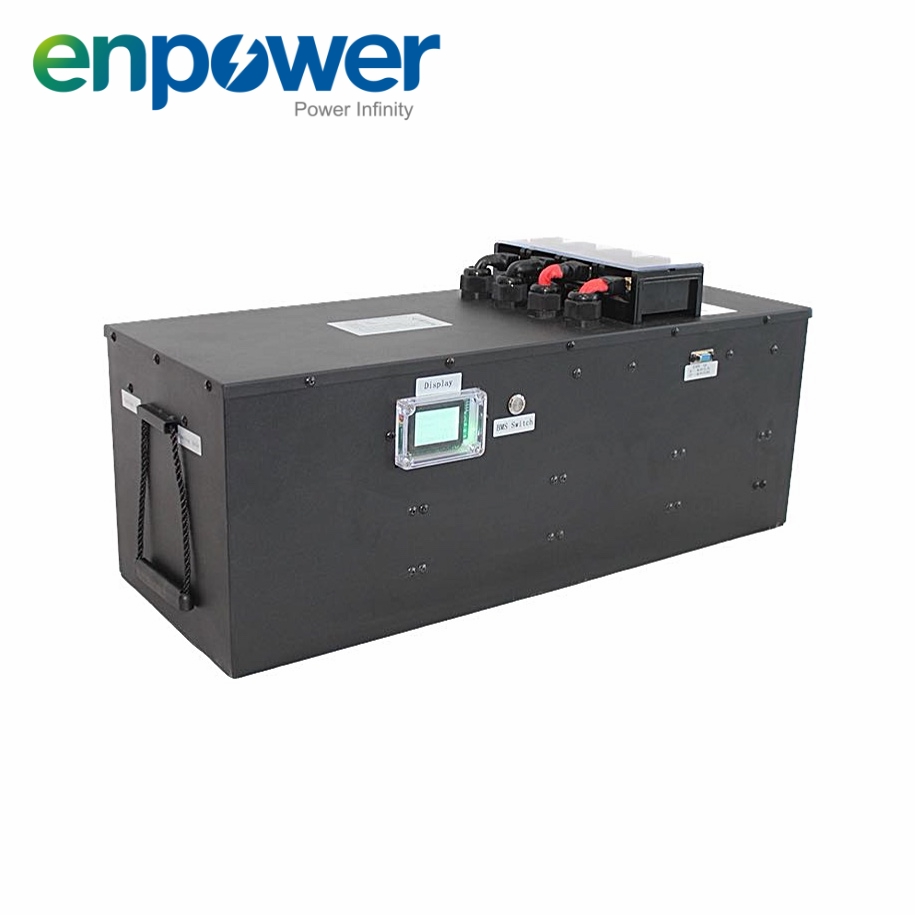

Enpower ENL-FP24200 is a high-capacity 24V 300Ah LiFePO4 battery pack housed in a rugged steel enclosure, engineered for home appliances, electric power systems, backup batteries, uninterruptible power supplies (UPS) and vehicle applications. Delivering a maximum output current of 500A and an extreme operating window of -40℃ to +60℃, this pack is built with high quality cells offering 2000+ cycles at 80% DOD. The integrated smart BMS provides comprehensive protection (over-charge, over-discharge, over-current, short-circuit, over-temperature and cell balancing), while the RS-232 / RS-485 protocol interface enables real-time monitoring of voltage, current, SOC and temperature through your power management system. With dimensions customizable to your equipment bay and a full 3-year warranty, the ENL-FP24200 is a drop-in energy storage solution for demanding stationary and mobile power applications.
✅ Massive 7.2kWh Energy in a Rugged Steel Case. With 24V nominal voltage and 300Ah capacity, the ENL-FP24200 stores 7.2kWh of usable energy and sustains discharge currents up to 500A — enough to start heavy loads, run household appliances through an inverter, or buffer an entire UPS rack. The powder-coated steel enclosure protects the cells from impact, vibration and electromagnetic interference, making it equally suitable for stationary racks and mobile vehicle platforms.
✅ 2000+ Deep Cycles & Extreme Temperature Tolerance. Built from high quality LiFePO4 cells with long cycle life, the pack delivers 2000+ cycles at 80% depth of discharge — roughly 6× the service life of comparable lead-acid batteries. The validated operating window of -40℃ to +60℃ keeps the battery performing through harsh winters and hot engine-room environments where ordinary lithium packs derate or shut down.
✅ Smart BMS with RS-232 / RS-485 Monitoring. The integrated battery management system continuously guards every cell against over-charge, over-discharge, over-current, short-circuit and over-temperature, while actively balancing cells to maximize pack life. The RS-232 / RS-485 protocol interface streams real-time voltage, current, state-of-charge, temperature and alarm data to your PCS, inverter or SCADA system for full visibility and remote diagnostics.
⚠ High-current hazard — professional installation only. The ENL-FP24200 can deliver up to 500A. Always use appropriately rated cables, terminals and fusing, and ensure the load circuit is de-energized before making connections.
⚠ Charge with a LiFePO4-compatible charger only. Using a charger designed for lead-acid or other lithium chemistries may trigger BMS protection or, over time, degrade the cells.
⚠ Do not short-circuit, puncture, crush or expose to fire. Stop using the pack immediately if you notice swelling, overheating, leaking or abnormal odor, and contact Enpower support.
⚠ Series / parallel expansion must be pre-approved. Connecting packs in series or parallel without consulting Enpower engineering may damage the BMS or create unsafe operating conditions.
⚠ Storage: For long-term storage keep the pack at 30%–50% SOC in a dry, ventilated place within -10℃ ~ +35℃, and recharge every 6 months to prevent deep self-discharge.
Enpower integrates R&D, production and quality testing in-house, supporting custom battery solutions for worldwide buyers.
